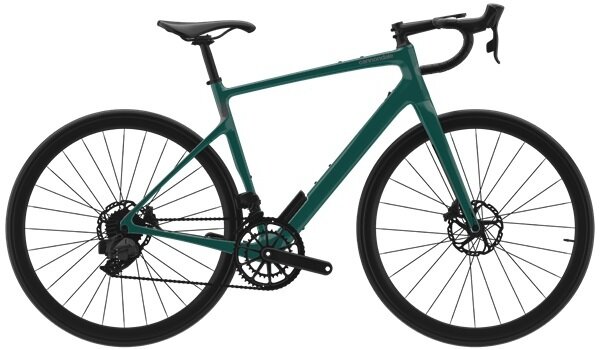

Cannondale Synapse Carbon 4

Cannondale Synapse Carbon 4
  • Color: Pine
  • Color: Cashmere
  • Color: Rose Gold
$2,424.99
Please select options
Order now and pick up in-store for free

Details

Road Reimagined. Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse—our most comfortable, all-around, up-for-anything, pure road machine.

Where it thrives
The open road, up & down hills, rough pavement

What it's built for
Comfort, handling, going long

Highlights
- Lightweight Synapse Carbon frameset / SmartSense ready
- Shimano Tiagra 10-speed group w/ hydraulic disc brakes
- Integrated Cannondale App connectivity

Geometry

Geometry Chart:
SIZE48cm51cm54cm56cm58cm61cm
Wheel Size 700c 700c 700c 700c 700c 700c
A Seat Tube Length (cm) 40.7 44.3 48 52 55 59
B Top Tube Horizontal (cm) 53.3 54.4 55.5 56.7 57.9 59.8
C Top Tube Actual (cm) 51 52.1 53.3 54.7 56 57.9
D Head Tube Angle 71.3° 71.4° 73.1° 73.2° 73.3° 73.4°
E Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0° 73.0°
F Standover (cm) 71.2 74.2 77.3 78.7 83.3 86.8
G Head Tube Length (cm) 10.9 13 14.3 16.4 18.7 21.8
H Wheelbase (cm) 99.1 100.2 98.7 99.8 101.1 102.8
I Front Center (cm) 58.8 59.8 58.3 59.4 60.6 62.3
J Chain Stay Length (cm) 41.5 41.5 41.5 41.5 41.5 41.5
K Bottom Bracket Drop (cm) 7.5 7.5 7.3 7.3 7 7
L Bottom Bracket Height (cm) 27 27 27.2 27.2 27.5 27.5
M Fork Rake (cm) 5.5 5.5 4.5 4.5 4.5 4.5
N Trail (cm) 5.9 5.8 5.8 5.7 5.6 5.6
0 Stack (cm) 53 55 57 59 61 64
P Reach (cm) 37.1 37.6 38.1 38.7 39.3 40.2
Sizes:
SIZERIDER HEIGHT
48 5'2" to 5'6"
51 5'5" to 5'9"
54 5'7" to 5'11"
56 5'9" to 6'1"
58 6'0" to 6'4"
61 6'3" to 6'8"

Specs

Frame Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Wheels RD 3.1, 28h, 21mm IW
Hubs (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Spokes Stainless Steel, 14g
Tires Vittoria Zaffiro Pro Reflective, 700 x 30c
Bottom Bracket Shimano BSA
Crankset Shimano Tiagra, BSA, 50/34
Shifters Shimano Tiagra hydraulic disc, 10-speed
Front Derailleur Shimano Tiagra, braze-on
Rear Derailleur Shimano Tiagra GS
Cassette/Freewheel Shimano Tiagra, 11-34, 10-speed
Chain Shimano HG54, 10-speed
Brakes Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Brake Levers Shimano Tiagra hydraulic
Handlebars Cannondale 3, 6061 Alloy, Compact
Tape/Grips Fabric Knurl Bar Tape
Stem Cannondale 3, 6061 Alloy, 31.8, 7°
Headset Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
Seatpost Cannondale 3, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61)
Saddle Fizik Aliante Delta, S-alloy rails
Accessories & Extras Trainer-compatible Thru-Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Pine / 48cm 884603929780 C12402U3048 C12402U3048
Pine / 51cm 884603929797 C12402U3051 C12402U3051
Pine / 54cm 884603929803 C12402U3054 C12402U3054
Pine / 56cm 884603929810 C12402U3056 C12402U3056
Pine / 58cm 884603929827 C12402U3058 C12402U3058
Pine / 61cm 884603929834 C12402U3061 C12402U3061
Cashmere / 48cm 884603914984 C12402U1048 C12402U1048
Cashmere / 51cm 884603914991 C12402U1051 C12402U1051
Cashmere / 54cm 884603915004 C12402U1054 C12402U1054
Cashmere / 56cm 884603915011 C12402U1056 C12402U1056
Cashmere / 58cm 884603915028 C12402U1058 C12402U1058
Cashmere / 61cm 884603915035 C12402U1061 C12402U1061
